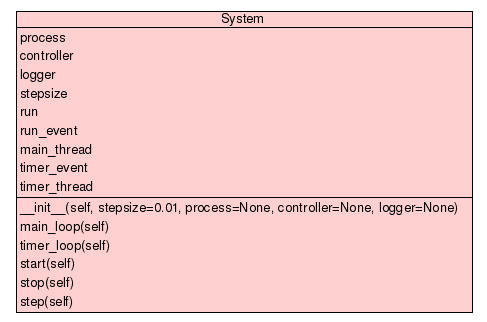

Class System

source code

Manages the whole system.

process is the current controlled process. controller is the current controller.

The whole system is executed in a separate thread. The timer is also realized as separate thread.

Instance Methods

[hide private]

__init__(self, stepsize=0.01, process=None, controller=None, logger=None)
x.__init__(...) initializes x; see x.__class__.__doc__ for signature

source code

main_loop(self)
Realize main control loop as separate thread, so it can be running independently of the GUI timers

source code

timer_loop(self)
Realize a timer, using sleep is usually more precise than using the GUI timer

source code

start(self)
Start the main loop.

source code

stop(self)
Stop the main loop.

source code

step(self)
Make a single step of the main loop.

source code

Inherited from object: __delattr__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __str__

Instance Variables

[hide private]

process
process to control

controller
controller for calculating control values

logger
logging instance

stepsize
step size of loop for simulations in seconds

run
main loop in in continuous run mode

run_event
controls the main loop's turn (if set make another turn)

main_thread
the main loop thread

timer_event
periodic trigger for main loop

timer_thread
calculation time independent periodic trigger generator

Properties

[hide private]

Inherited from object: __class__

Method Details

[hide private]

init(self, stepsize=0.01, process=None, controller=None, logger=None)
(Constructor)

source code

x.__init__(...) initializes x; see x.__class__.__doc__ for signature

Overrides: object.__init__: (inherited documentation)

step(self)

source code

Make a single step of the main loop. ( = stop after one step)
